Leasing de Sany 2020 SANY Stc800t6 used crane【ACHIEVE】TOP CONDITION!!!

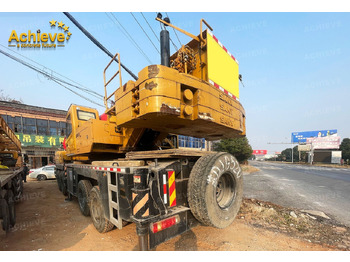

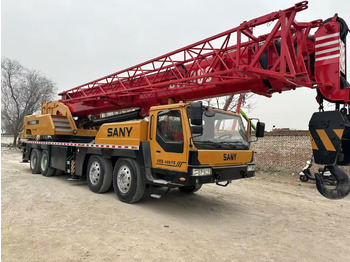

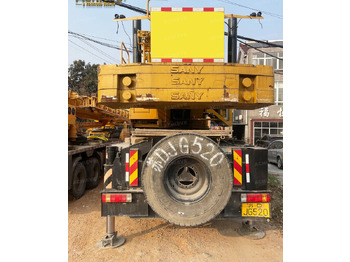

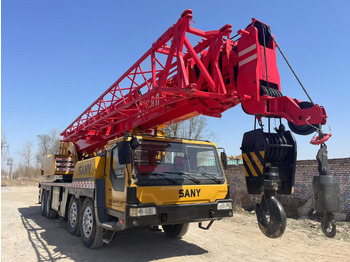

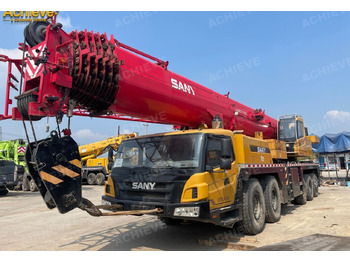

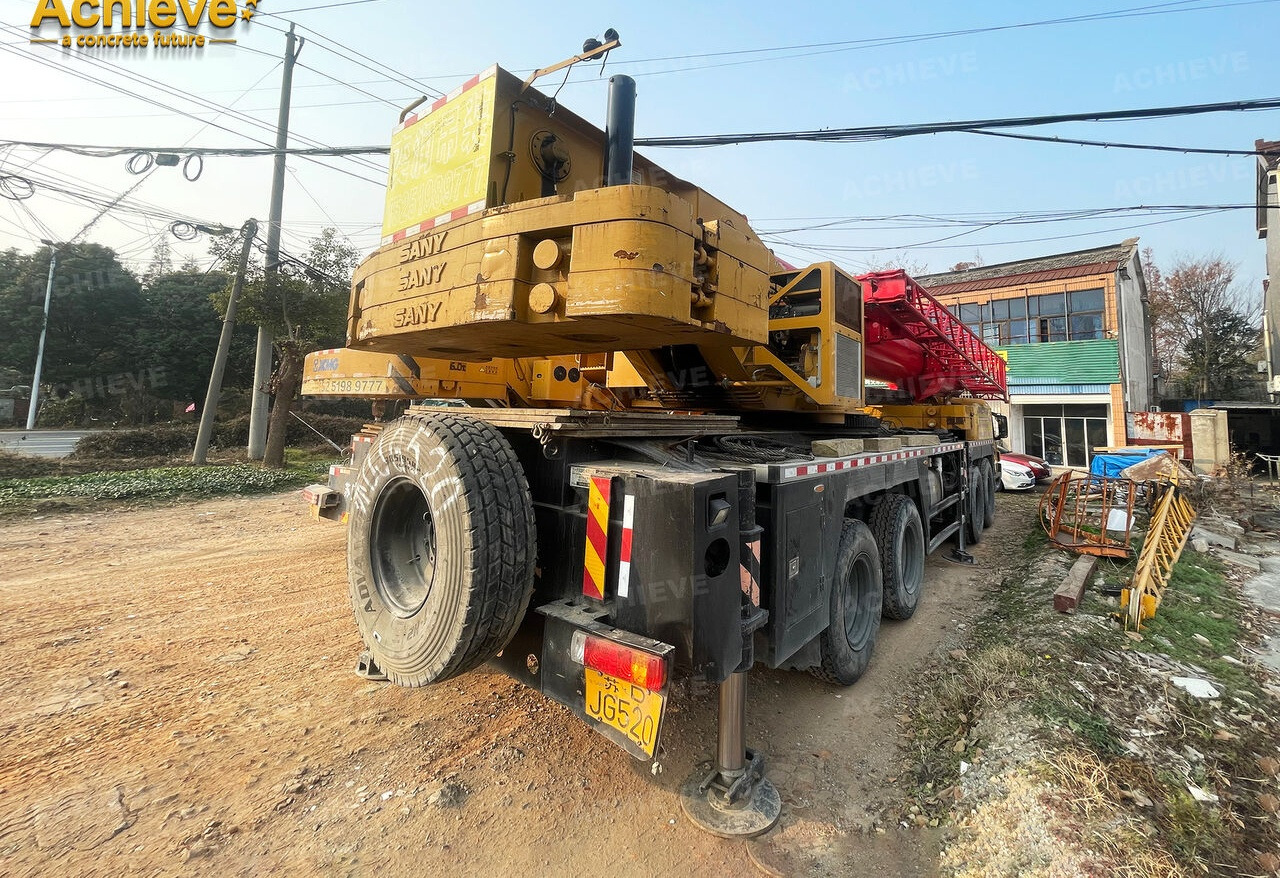

【ACHIEVE】TOP CONDITION!!! ACHIEVE 2020 SANY Stc800t6 used sany 80 tons Hydraulic Truck Crane STC800T6 SANY Truck Crane 80 Tons Lifting Capacity

Performance parameters

Maximum lifting height

78m

Maximum lifting moment

3410.4kN·m

Maximum lifting capacity

80t

Speed parameter

Maximum single rope speed of main winch

130m/min

Full extension of boom/Shorten time

125/130s

Full lifting of boom/Fall time

60/90s

Maximum giant slalom speed

1.8r/min

Weight parameters

Total weight of complete machine

50000kg

Maximum counterweight

20.2t

Dimensional parameters

Overall length of the machine

15000mm

Full width of the whole machine

2800mm

Full height of the whole machine

3880mm

Outrigger span（HorizontalxLongitudinal）

8x6.43m

Dynamic parameters

Engine model

WeichaiWP12.400E62(CountryVI)

Maximum engine power

294/1900kW/rpm

Maximum output torque of engine

2000/(1000-1400)N·m/rpm

Driving parameters

Maximum travel speed

90km/h

Minimum Turning Radius

12m

Maximum climbing gradient

0.45

Angle of approach

18°

Departure angle

14°

Minimum ground clearance

310mm

MAX. CAPACITY (Outriggers) - 80 Tonnes at 3m Radius (75% Rating) 3600 Slew

BOOM - 5 SECTION U shaped 11.8m - 45.0m

MAX. ROAD SPEED -80 km/hr

CARRIER - 8x4 Drive

MAX. ROAD SPEED - 85 km

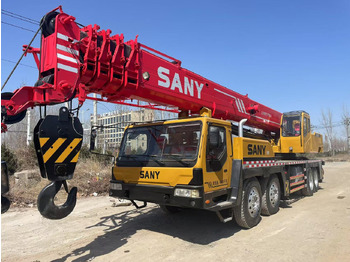

The Sany STC800T6 is a hydraulic truck crane known for its exceptional lifting capacity and reliability. Equipped with a 6-section large cross-section U-shaped main boom that extends up to an impressive 57.6 meters and a fixed jib of 27 meters, it boasts the longest reach in the industry. Its lifting performance surpasses its competitors with an 8-meter wide lateral outrigger span and a full counterweight of 20 tons, ensuring stable and powerful lifting capabilities.

The chassis of the STC800T6 is designed for high load-carrying capacity. With a new 2.8-meter wide chassis and an enhanced rectangular frame, it provides comprehensive anti-torsion and anti-bending capabilities. Powered by a robust Weichai WP12 engine and equipped with a FAST 10-speed synchronized transmission and HanDe heavy-duty axles, the crane can easily handle slopes with a maximum climbing slope of 45%. Additionally, it achieves impressive fuel efficiency, consuming only 44 liters of fuel per 100 kilometers.

Excellent and stable chassis performance /chassis system

Double-axle drive is used, providing good traffic ability and comfortableness under complex road condition with reliable traveling performance. Engine has the multimode power output function, which reduces power consumption.

The use of tipping over early-warning technology provides high stability and safety of the overall operation.

Highly efficient, stable, energy-saving and adjustable hydraulic system

Electrical proportion Hydraulic system load feedback, piston pump, electrical controlled valve and constant power control are applied to provide strong lifting capacity and good micro-mobility. Unique steering buffer design is adopted to ensure stable braking operation.

Ultra long, super strong and highly sensitive load lifting capacity

Five-section boom of high strength steel structure and optimized U-shaped cross reduces weight significantly with higher safety rates Jib mounting angles are 0°, 15°and 30° which ensures fast and convenient change-over between different operating conditions so as to improving working efficiency of the machine.

Safe, stable, advanced and intelligent electric control system

Self-developed controller SYMC specially for engineering machinery is configured.

The adoption of CAN-bus full-digital network control technology ensures stable control signal, simple harness and high reliability.

Timely feedback of data information can achieve the monitoring of the overall working status in real-time.

The load moment limiter equipped with the comprehensive intelligent protection system is used with accuracy within 3% to provide a omprehensive logic and interlock control, thus ensuring more safe and reliable operation.
